DATA Back In Stock & SIREN Update
/

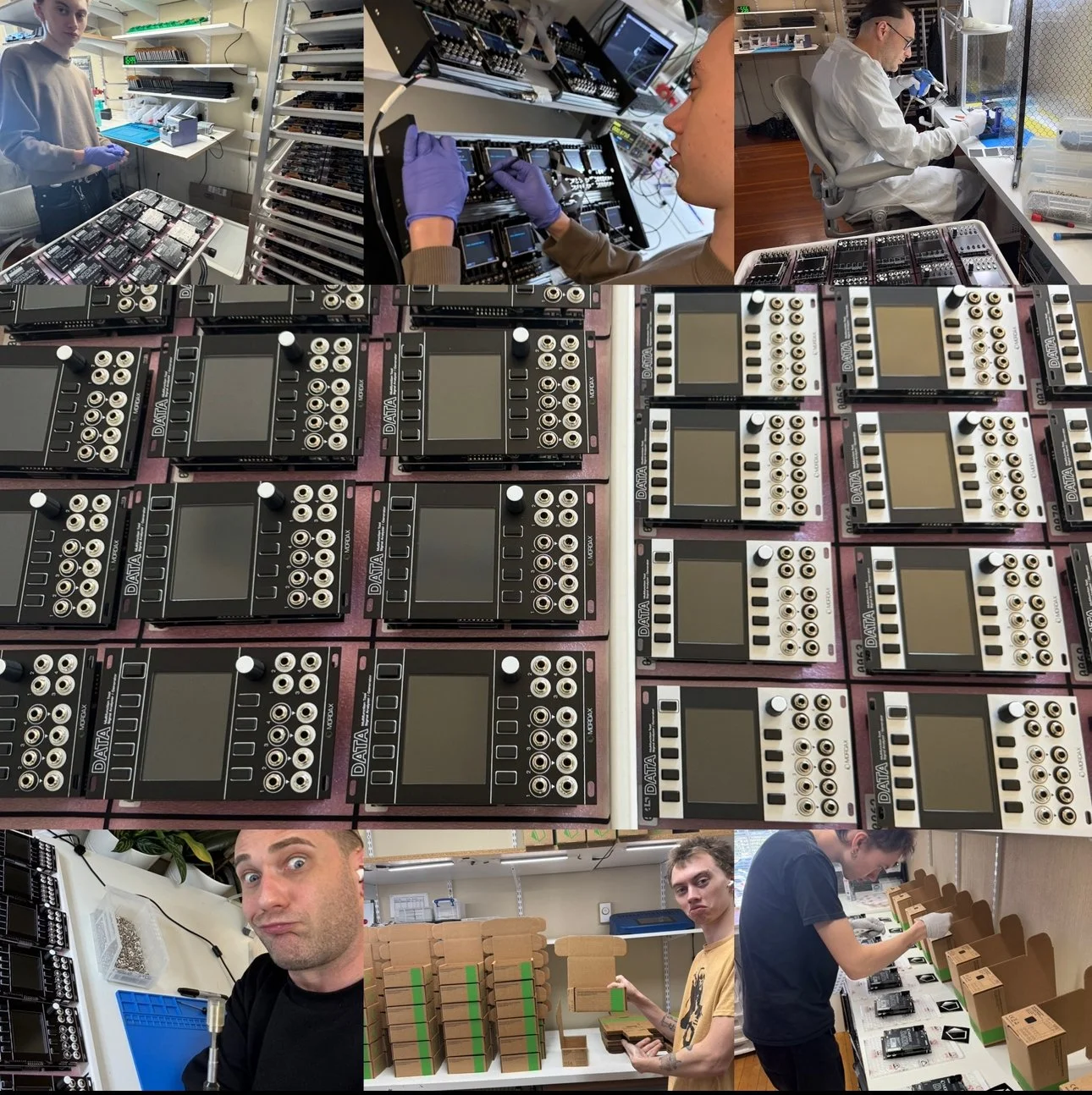

MORE DATA!!! At last, the latest batch of Mordax DATA is in stock and now shipping, available on our web shop and through our amazing retail partners! 🙌
Remember, the DATA does many things! Be sure to check out the DATA User Guide and learn about about all the features packed into 16HP: http://mordax.link/DATA_User_Guide
And as I’m sure many are wondering - How’s the SIREN going? I had to pause for a bit to work on DATA production, but expecting to be able to resume SIREN development towards the end of this month. I left off in the middle of PCB layout for the initial production prototype, fingers crossed it all works on the first go and we’ll be able to move to production sooner than later. We were aiming to have it out by the year’s end, but unsurprisingly, it’s now looking more like first quarter 2026. Stay tuned for more!
*FREE SHIPPING ON ALL U.S. DOMESTIC ORDERS*
DATA : The multifunction tool for Eurorack modular systems
16 HP (81.28mm width)
35mm approx. depth
Full color, 2.8” (71mm) display, with crystal clear, scratch resistant window
User upgradable firmware via included microSD card
Oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more
Input / Output:
4 input jacks (+/-10V range), AC or DC coupled via on-screen control
4 buffered through jacks, one for each input channel
4 output jacks (+10 to -5V range), can be CV, audio, trigger or gate signals
Power Consumption (average):
~250mA +12V
~60mA -12V
Availability: OUT OF STOCK
ANOTHER ROUND OF DATAS ARE IN PRODUCTION NOW!
*** NEXT BATCH READY SUMMER 2026 ***
Also, be sure to check with our Retail Partners, as they may still have some DATAs available.
